Push Scan Results to ScanHive

Every scan result gets into ScanHive the same way: one HTTP call to the upload endpoint, authenticated with an API key. This page covers the scan types it understands, how to get a project and a key from the UI, and a ready-to-paste Azure Pipelines task.

Supported scan types

Each upload is classified as one of six types — pick the one matching your scanner's output. Values are matched exactly, including the space in Container Security.

Scan type	What it catches	Example tools
`SAST`	Vulnerable patterns in your own source code	Semgrep, CodeQL, Checkmarx, Fortify
`SCA`	Known vulnerabilities in open-source dependencies	Snyk
`Secrets`	Credentials, tokens, and keys committed to the repo	Gitleaks
`Container Security`	Vulnerabilities in container images and base layers	Trivy, Grype
`IaC`	Misconfigurations in Terraform, CloudFormation, Kubernetes manifests	Checkov, KICS
`DAST`	Runtime testing against a deployed, running application	OWASP ZAP

Create an API key and a project

Every upload needs two things: a project to own the results, and an API key to authenticate the request.

Create a project — Projects → Create project. Project names are unique per organization and case-insensitive.

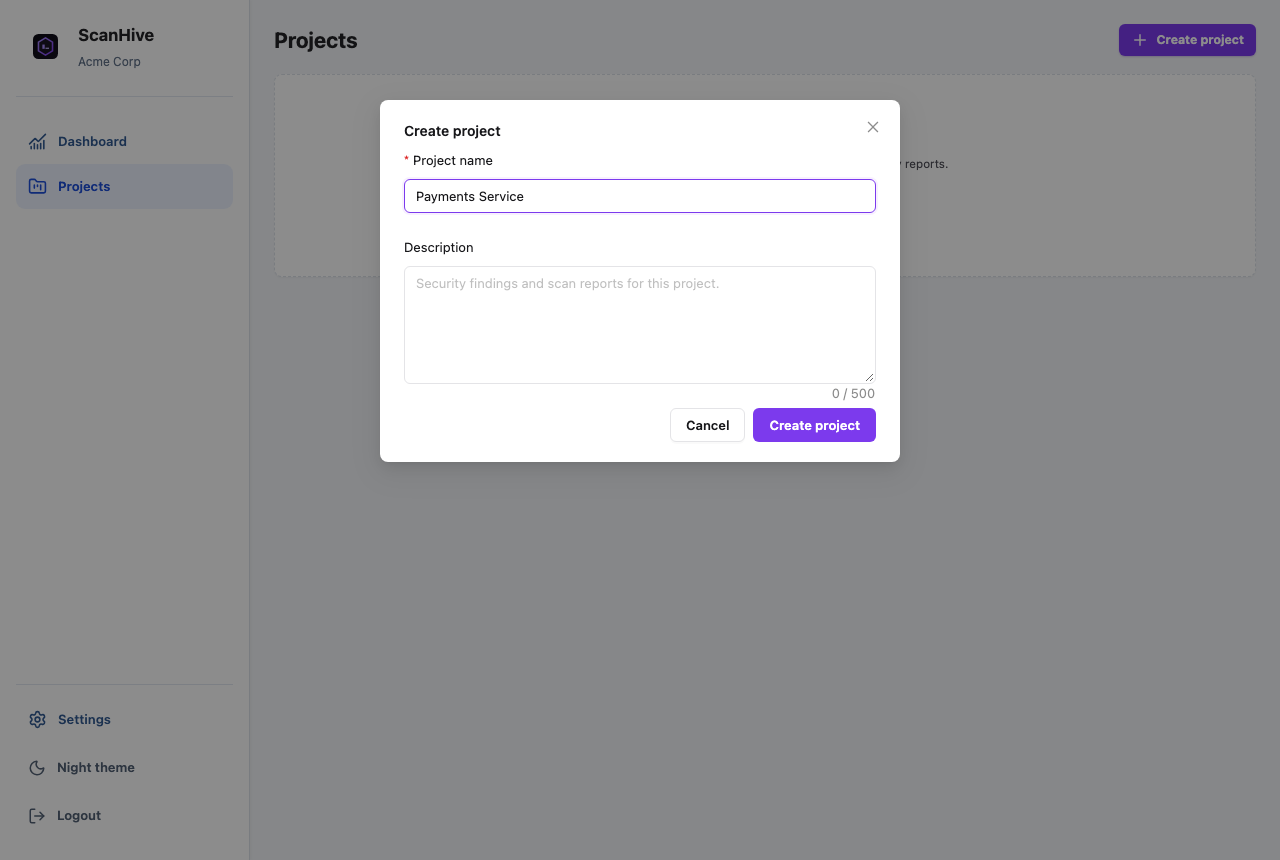

ScanHive Create project dialog with the name field filled in — Projects → Create project

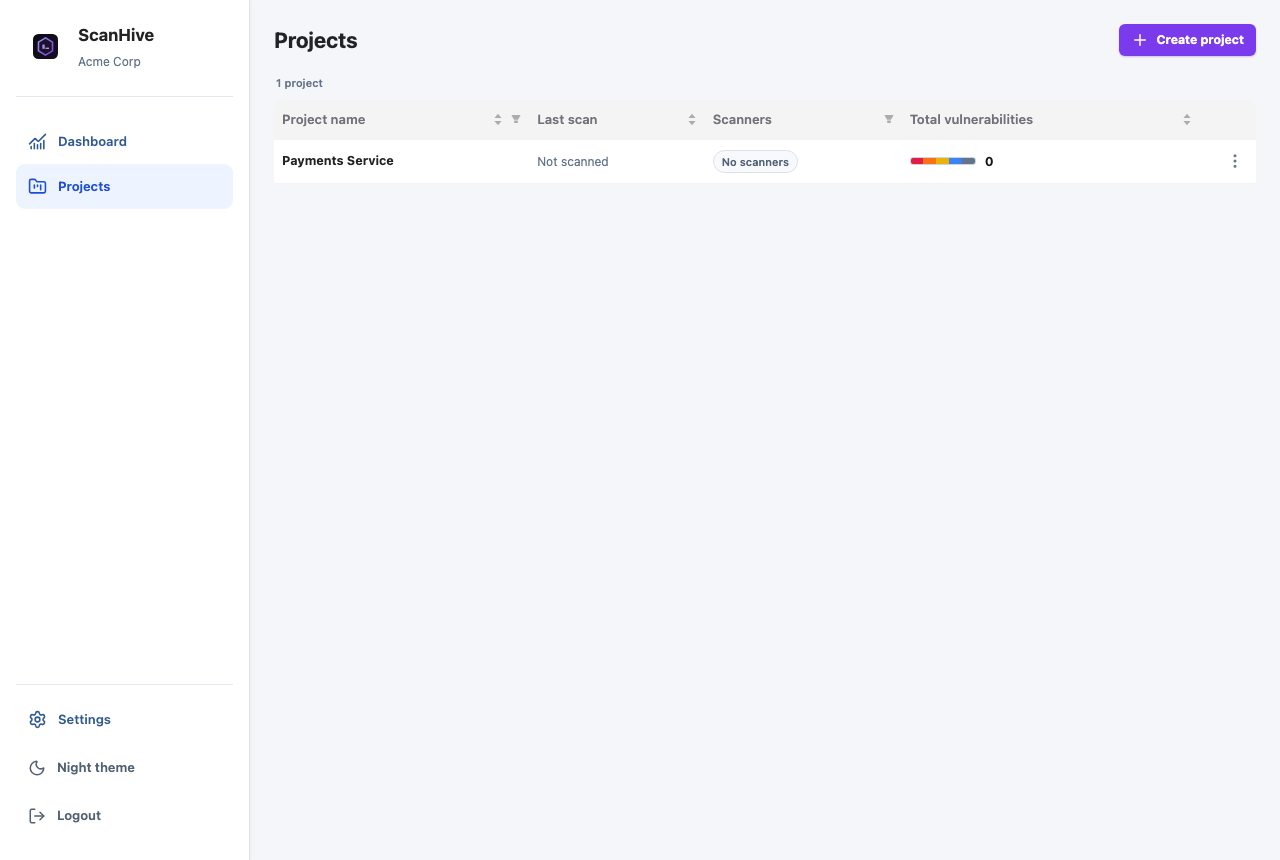

ScanHive projects list showing the newly created project — The new project's name — or the ID from its URL — is what you'll use as `PROJECT_ID` below.

Create an API key — Settings → API Keys → Create API key. Keys are valid for 365 days, and the plaintext value is shown exactly once.

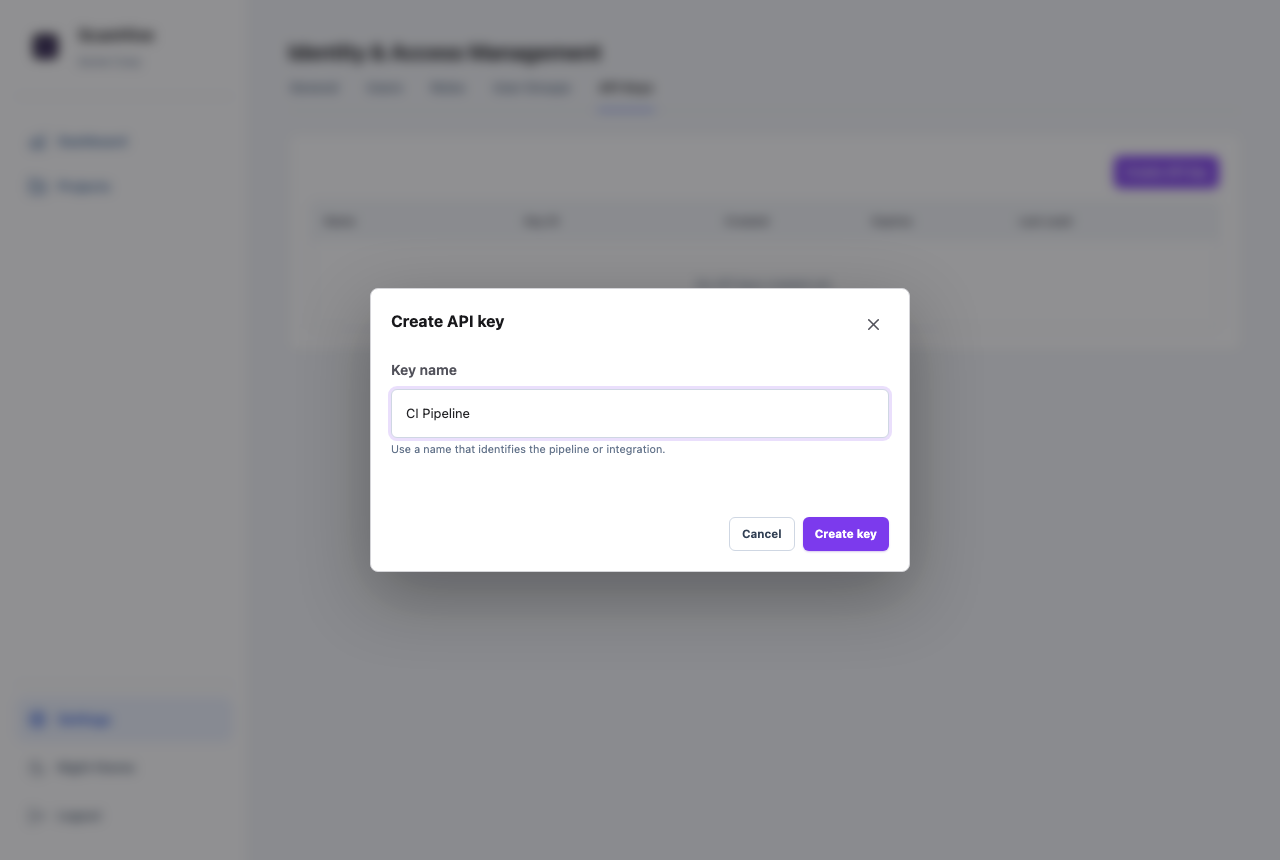

ScanHive Create API key dialog — Settings → API Keys → Create API key

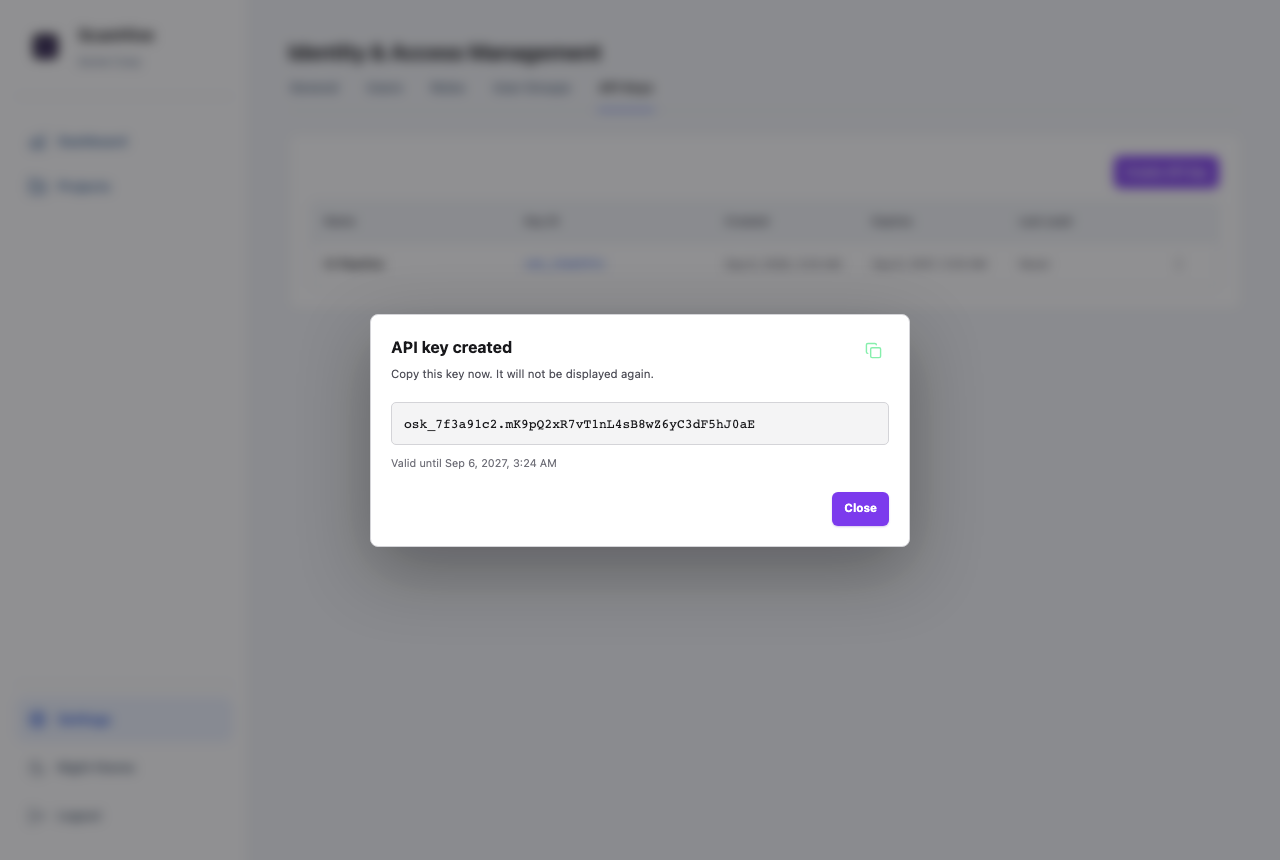

ScanHive API key created dialog showing the key once — Copy it now — it won't be shown again. Store it as a pipeline secret, never in the repo.

If a project name contains spaces (like Payments Service above), either URL-encode it or use the project's UUID instead — visible in the project's URL in the browser address bar. The tasks below don't encode the value for you.

Add it to your pipeline

Drop this into azure-pipelines.yml. Add PROJECT_ID and API_KEY as pipeline variables first (Pipeline → Edit → Variables) — mark API_KEY secret with the lock icon.

Bash

Linux & macOS agents

azure-pipelines.yml

- task: Bash@3
  displayName: 'Upload Report - ScanHive'
  inputs:
    targetType: 'inline'
    script: |
      curl --fail --silent --show-error \
        --request POST \
        "http://localhost:8000/api/v1/scans/upload/$(PROJECT_ID)" \
        --header "X-API-Key: $(API_KEY)" \
        --form "scan_type=Secrets" \
        --form "file=@gitleaks.sarif"

Swap http://localhost:8000 for your real ScanHive URL, and scan_type / file to match whatever scanner produced the report for that stage.
